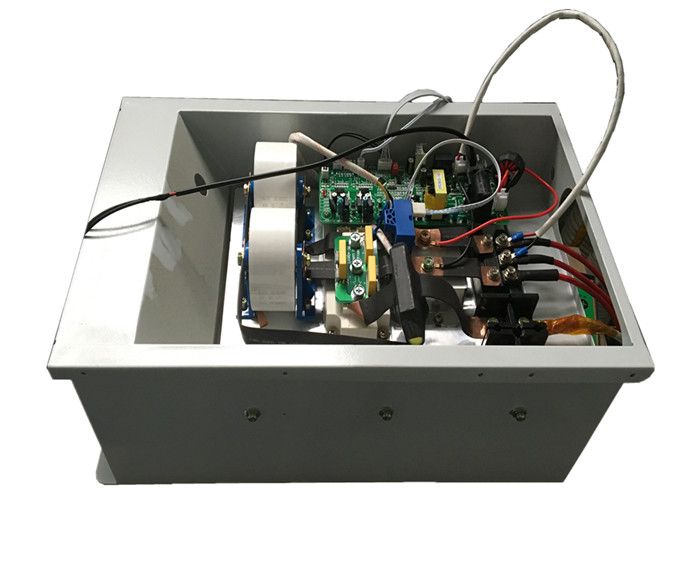

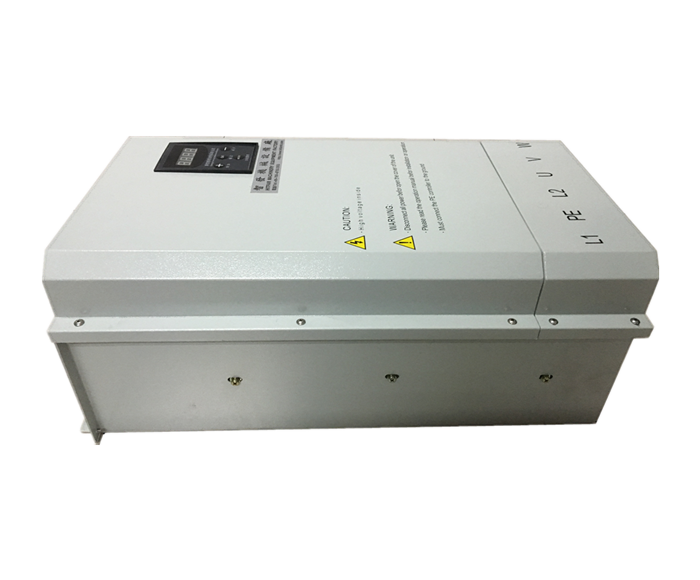

Induction Heater Main Controller
Descriptions
Model No.: ZG-EH20, ZG-EH25
Input Power: 20KW, 25KW
Rated Voltage: 380V-3P, 50Hz/60Hz (415V/440V/480V can be customized)
Matching Components: temperature controller and sensor + induction heating coil made from copper core resistance wire
| Model No. | ZG-EH20 | ZG-EH25 |
| Rated Input Voltage and Frequency | three-phase 380V50-60Hz | three-phase 380V50-60H |
| Rated input power(KW) | 20KW | 25KW |
| Rated input current (A) | 28-30 | 36-38 |
| Rated output current (A) | 80-100 | 100-125 |
| Coil parameter (mm2) | 25MM2 | 25MM2 |
| Output frequency sumLoad inductance range (uH) | 80-100uH | 90-120uH |
| Heating distance (mm) | 15-30MM | 15-30MM |
| Approximate effective length of coil(m) | 34-45M | 32-43M |
Pay attention to: the length of the coil wire is just a reference. We need to make some changes when we meet different material, shape and size of the loading. Here the loading means the part need to heat. The winding technique is different when we use different winding methods to make the induction heating coil. In general, we should firstly pay attention to the input and output operating current and working frequency. As long as the input current reaches the highest and must not exceed too much, and the output working frequency should be not higher than 20kHz and not less than 10kHz. Then the induction heater controller would be no problem.
