ZG-UHF30 30KW /200KHz Ultra-High Frequency Induction Heating Welding Machine
ZG-UHF30 30KW /200KHz Ultra-High Frequency Induction Heating Welding Machine
ZG-UHF30 30KW /200KHz Ultra-High Frequency Induction Heating Welding Machine

ZG-UHF30 30KW /200KHz Ultra-High Frequency Induction Heating Welding Machine

Descriptions

Model No.:ZG-UHF30 200khz separate-type

Rated Power:30kw adjustable

Main Function: heating/brazing/hardening for small metal parts even less < 1mm copper or steel wire

Main Advantage: ultra high frequency 100Khz to 200Khz, thin surface quenching and hardening

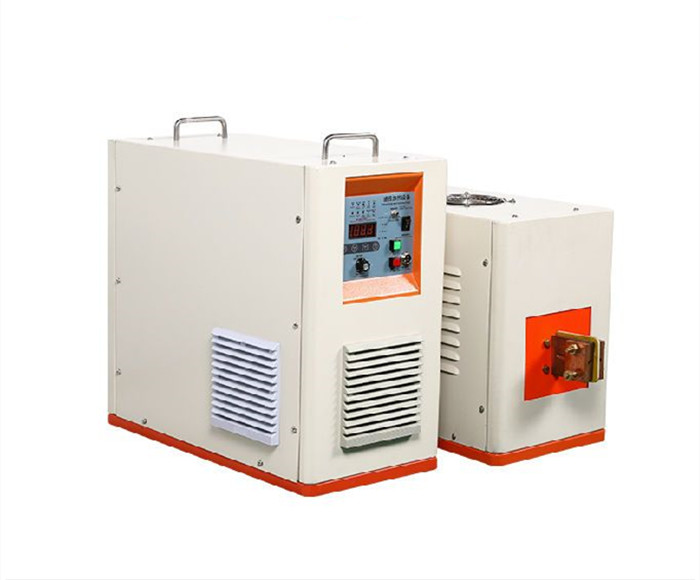

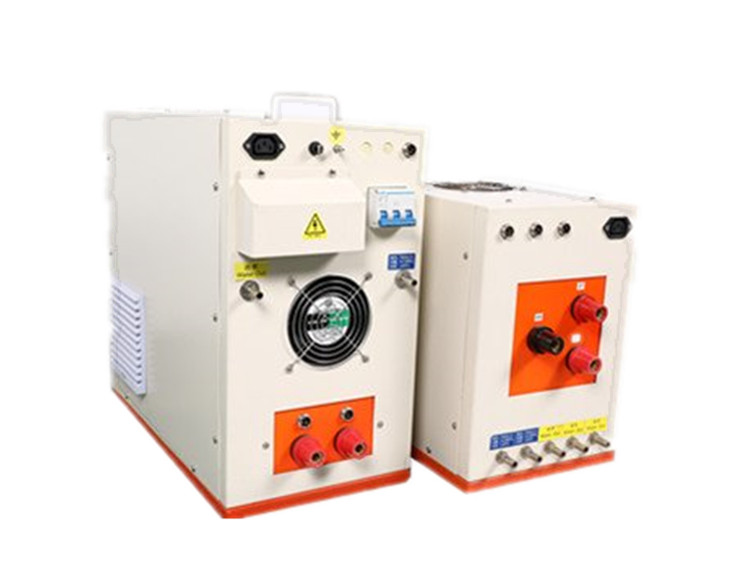

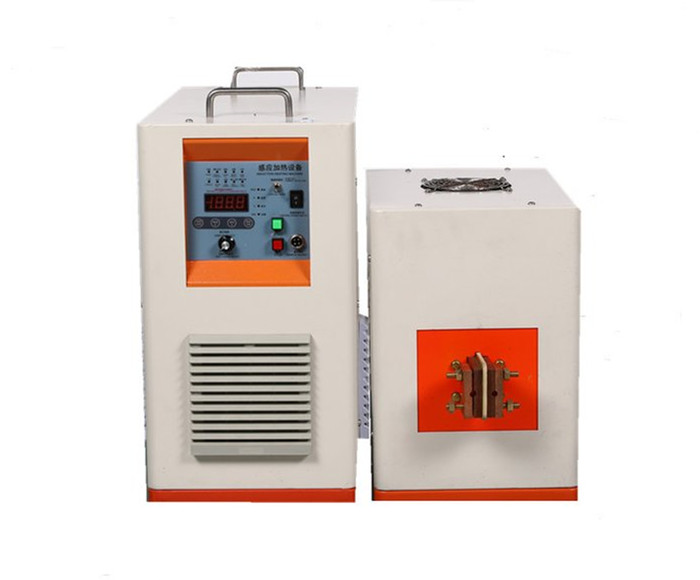

Main Components: Induction Heating Main Controller + Heating Station(Transformer)+ Induction Coil

APPLICATION

1. ZG-UHF series ultra high frequency induction heating machine can do welding materials like red copper and brass welding, tungsten steel and stainless steel welding, copper aluminum welding, etc.

2. Commodity industry: ultra high frequency induction heating welding of glasses, jewelry, watches, fishing gear, fishing tackle, hardware and other products.

3. Tool industry: ZG-UHF series ultra high frequency induction heating machine can do saw tooth carbide saw blade, tool welding, heat treatment of carbide tool products, etc

4. Electronics industry:  ZG-UHF series ultra high frequency induction heating machine can do motor rotor thermal assembling , knife handle thermal fitting, electrode silver brazing, vibrator welding, connector welding.

5. Entertainment products:  ZG-UHF series ultra high frequency induction heating machine can do welding of pipe music accessories, golf head welding, etc

6. Metal embedding: bulb electrode, etc

ZG-UHF30 30KW 200KHz Ultra-High Frequency Induction Heating Welding Machine.png

MAIN FEATURES

ZG-UHF series ultra high frequency induction heating machine adopts inverter technology, with German IGBT as the power driving parts, three circuit oscillating current, the output frequency of the device can reach 200Khz, the power output rate is high, and the performance is stable. Its high output frequency can heat very small fine metals size same as hairs, so as to achieve rapid surface temperature rise, fast heating, good uniformity, and less oxide layer. It is suitable for processes with high requirements such as metal quenching, welding, connection annealing, etc

ZG-UHF30 30KW 200KHz Ultra-High Frequency Induction Heating Welding Machine.jpg

TECHNICAL PARAMETER
(1)INPUT POWER:380V-3P, 50/60Hz
(2)WORKING VOLTAGE RANGE:380V±10%
(3)OSCILATION FREQUENCY :200KHZ
(4)HEATING TIME SETTING:1-99S OR N
(5)RETAIN TIME SETTING:1-99S OR N
(6)MAXI WORKING. POWER:30KW
(7)LOADING:100%
(8)COOLING WATER :6L/min(0.2mpa)
(9)COOLING WATER TEMPERATURE:5-50℃
(10)WORKPIECE:METAL PARTS
(11)APPLICATION:HEATING, HARDEINGING, QUENCHING, ETC
(12)MAIN POWER CONTROLLER35KG
(13)HEATING STATION21KG
(14)DIMENSION:MAIN POWER CONTROLLER:560*285*510mm3HEATING STATION: 460*310*430mm3
