Ultra High Frequency Induction Heater

Ultra High Frequency Induction Heater

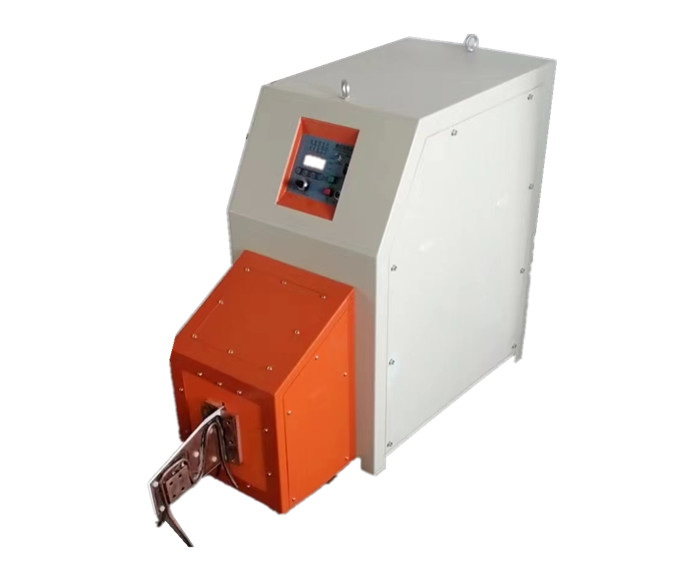

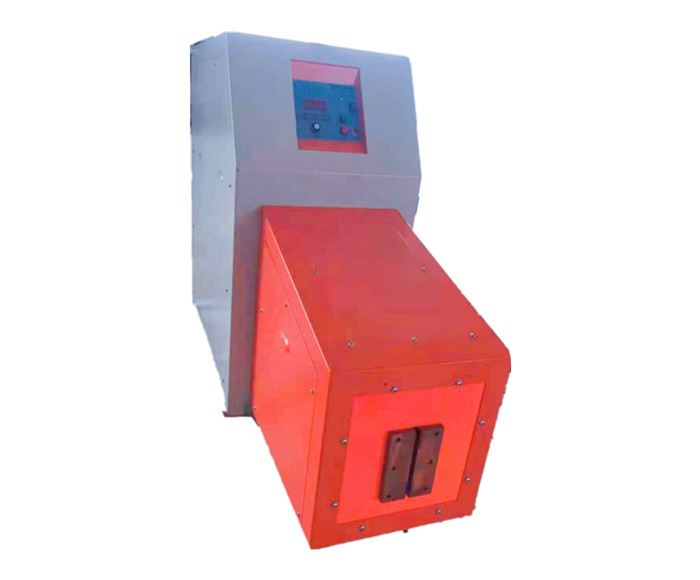

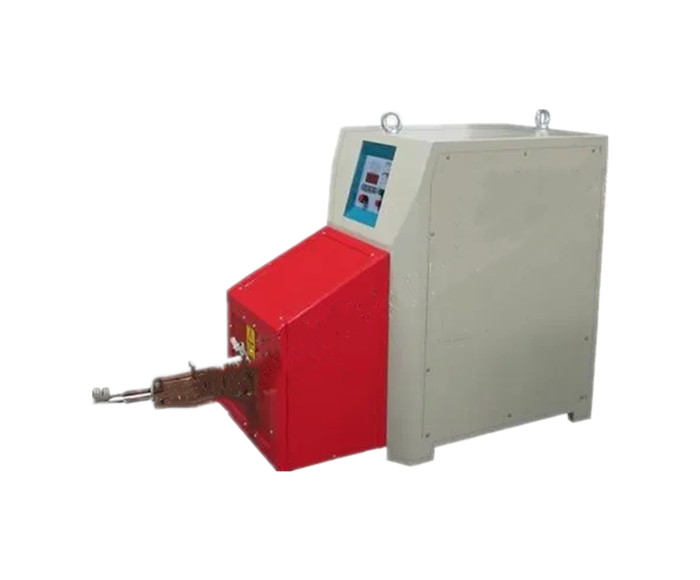

ZG-UHF30 30KW /400KHz and 800KHz Ultra-High Frequency Induction Heating Hardening Machine
ZG-UHF30 30KW /400KHz and 800KHz Ultra-High Frequency Induction Heating Hardening Machine
ZG-UHF30 30KW /400KHz and 800KHz Ultra-High Frequency Induction Heating Hardening Machine

ZG-UHF30 30KW /400KHz and 800KHz Ultra-High Frequency Induction Heating Hardening Machine

Descriptions

Model No.:ZG-UHF30 400KHZ or 800KHz Unit-type

Rated Power:30kw adjustable

Main Function: heating/brazing/hardening/quenching for fine and thin metal parts surface or inner hole

Main Advantage: ultra high frequency up to 400Khz , or 800KHz thin and smooth surface quenching and hardening

Main Components: Induction Heating Main Controller + (Transformer Built-in)+ Induction Coil


APPLICATION

1.30KW /400KHz or 800KHz Ultra-High Frequency Induction Heating Hardening Machine can do heating materials like copper, brass steel , stainless steel etc.

2. 400KHz ultra high frequency is very suitable for welding fine glasses frames, jewelry connector, watches surface, fishing gear and tackle, and other products.

3. 30KW/400KHz Ultra-High Frequency Induction Heating Hardening Machine can do continuously quenching for very thin band saw blade rolls in a high speed without stopping.

4. 30KW/400KHz Ultra-High Frequency Induction Heating Hardening Machine is very good for electrode silver brazing, vibrator and connector welding too.

5. 400Khz high frequency induction heating machine can do welding for pipe music accessories, golf head etc.

ZG-UHF30 30KW 400KHz and 800KHz Ultra-High Frequency Induction Heating Hardening Machine.jpg

MAIN FEATURES

30KW /400KHz or 800KHz Ultra-High Frequency Induction Heating Hardening Machine adopts inverter technology, with German IGBT as the power driving parts, three circuit oscillating current, the output frequency of the device can reach 400Khz or even can higher to 800khz with high power output rate and stable performance. Because of Its very high output frequency, 30KW /400KHz or 800KHz Ultra-High Frequency Induction Heating Hardening Machine can heat very small fine metals size same as hairs or thin as 0.1mm to achieve rapid surface temperature rising and fast heating, and get the good uniformity and less oxide layer. It is suitable for processes with high requirements such as fine metal quenching like watches, jewelries and glasses frames etc.

ZG-UHF30 30KW 400KHz and 800KHz Ultra-High Frequency Induction Heating Hardening Machine.jpg

TECHNICAL PARAMETER

(1)INPUT POWER:380V-3P, 50/60Hz
(2)WORKING VOLTAGE RANGE:380V±10%
(3)OSCILATION FREQUENCY :400KHZ or 800KHZ
(4)HEATING TIME SETTING:1-99S OR N
(5)RETAIN TIME SETTING:1-99S OR N
(6)MAXI WORKING. POWER:30KW
(7)LOADING:100%
(8)COOLING WATER :6L/min(0.2mpa)
(9)COOLING WATER TEMPERATURE:5-50℃
(10)WORKPIECE:FINE METAL PARTS
(11)APPLICATION:HEATING, HARDEINGING, QUENCHING, BRAZING, ANNEALING ETC
(12)DIMENSION:MAIN POWER CONTROLLER:860*485*510mm3

P.S. Please notice the prices for 30kw of 800Khz is higher than of 400Khz!
