Medium Frequency Induction Heater/Generator

Medium Frequency Induction Heater/Generator

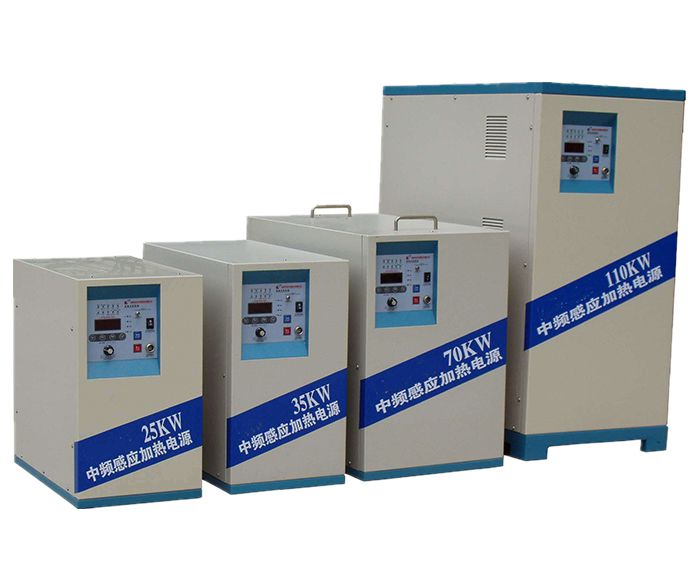

ZG-MF Series 15-300kw 1-20KHZ Medium Frequency Induction Heating Machine (Water Cooling)
ZG-MF Series 15-300kw 1-20KHZ Medium Frequency Induction Heating Machine (Water Cooling)
ZG-MF Series 15-300kw 1-20KHZ Medium Frequency Induction Heating Machine (Water Cooling)
ZG-MF Series 15-300kw 1-20KHZ Medium Frequency Induction Heating Machine (Water Cooling)
ZG-MF Series 15-300kw 1-20KHZ Medium Frequency Induction Heating Machine (Water Cooling)

ZG-MF Series 15-300kw 1-20KHZ Medium Frequency Induction Heating Machine (Water Cooling)

Descriptions

Model No.: ZG-MF15, ZG-MF25, ZG-MF35, ZG-MF45, ZG-MF70, ZG-MF90, ZG-MF110, ZG-MF160

Rated Power: 15kw, 25kw, 35kw, 45kw, 70kw, 90kw, 110kw, 160kw

Main Function: pre-heating and thoroughly heating before rolling, forging, pipe bending and other processes, smelting for metal from small volume from 1kg to 500kgs

Main Advantage: Oscillation Frequency low to 1-20Khz, heating the metal parts from the core to surface evenly and thorough out!

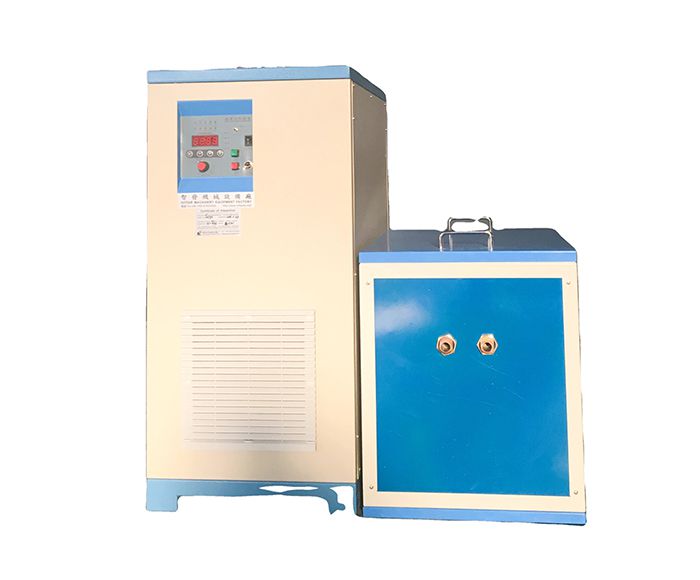

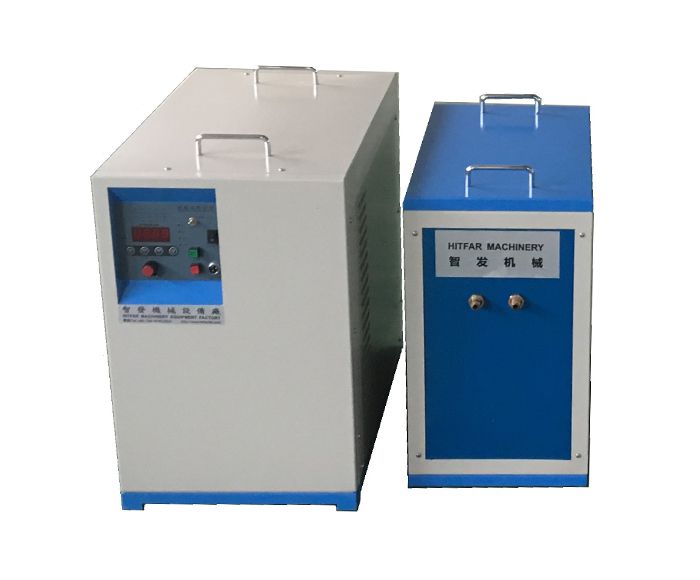

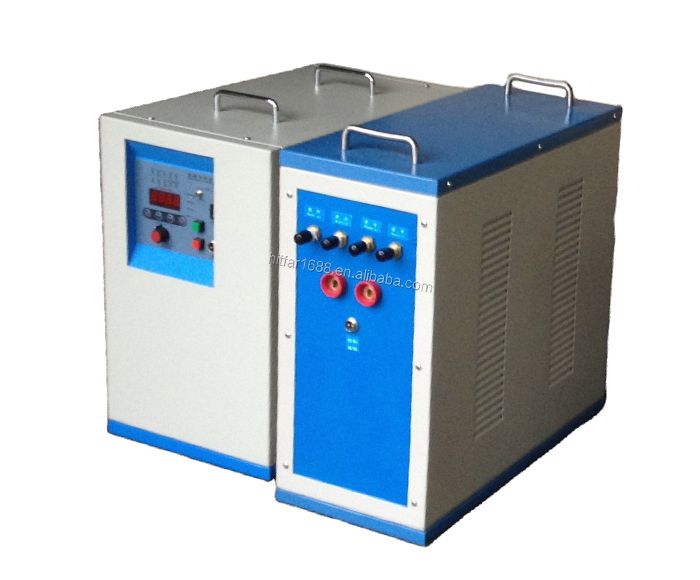

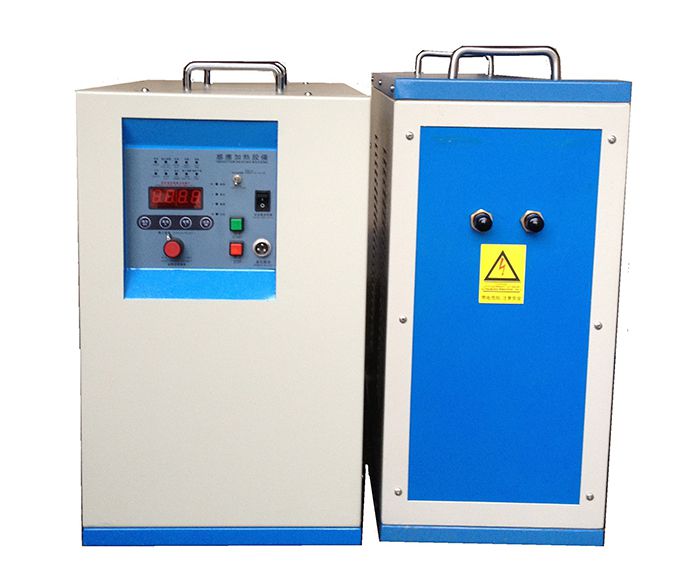

Main Components: MF Generator + Compensation Capacitor

Inquire Now
Share:
APPLICATION

1. Medium Frequency Induction Heating Machine can do welding & brazing for cutting tools, drilling tools, knives, woodworking tools, turning tools, drill bits, reamers, milling cutters, drill bits, saw blades, frames in the glasses industry.

2. Heat treatment: quenching and annealing of mechanical metal parts (surface, inner hole, part, whole) such as gears, machine tool guides, hardware tools, pneumatic tools, power tools, hydraulic parts, ductile iron, automobile and motorcycle parts, internal parts, etc.

3. Medium Frequency Induction Annealing Equipment can do diathermy heating before forging, forming, bending etc for standard parts, fasteners, large workpieces, small hardware, straight shank twist drills, overall and partial heat penetration and hot upsetting and hot rolling of twist drills, round steel with a diameter of less than 100mm,

4. Heating and annealing before stretching, molding, embossing for pipe bending, head smashing, steel wire (iron wire) , stainless steel products annealing, stretching, expanding, thermal expansion, etc.

5. Medium Frequency generator add a melting furnace can do smelting for gold, copper, silver, steel, and iron, aluminium etc.


ZG-MF Series 15-300kw 1-20KHZ Medium Frequency Induction Heating Machine (Water Cooling)

MAIN FEATURES

1, Heating very fast, high production efficiency, less oxidative denationalization, saving material and forging die costs.

2, The material utilization rate can reach 95% because the induction heating method heats evenly and the temperature difference between the core surface is extremely small

3, The life of the forging die is greatly increased in forging, and the surface roughness of the forging is less than 50um.

4, No pollution to the working environment, thus improve workers' labor working condition.

5, Low energy consumption: saving electricity cost.

6, Small in size, light in weight: very easy to move around.

7, Can attached to a infrared temperature controller for controlling very precisely!

ZG-MF Series 15-300kw 1-20KHZ Medium Frequency Induction Heating Machine (Water Cooling)

1. Save electricity at least 30% and highest to 80%, especially for big power machine;

2. No influence on working environment;

3. High efficiency: high frequency heating system has heat energy utilization rate of 95%+;

4. Heating fast, accurate temperature control;

5. Can work for a long time in harsh environments;

6. Low cost of power consumption compare to traditional resistance wire heating;

7. No unsafe factors compare to traditional heating: surface temperature only about 50℃~80℃;

8. External control like PLC can be connected.

If you are looking for medium frequency annealing machine manufacturer which can provide custom service and professional solutions for you, welcome to choose Hitfar. With more than 20 years induction heating machines design and production experience, our products have gained high reputation around the world, sincerely hope to cooperate with you!

TECHNICAL PARAMETER


Model No.ZG-MF15ZG-MF25ZG-MF35ZG-MF45ZG-MF70ZG-MF90ZG-MF110ZG-MF160ZG-MF240ZG-MF300
Max. Oscillating Power15KVA25KVA3KVA45KVA70KVA90KVA110KVA160KVA240KVA300KVA
Output Voltage70~520V70~550V
Input VoltageThree Phases, 380V±20% or 415V±20% (The input voltage can be designed according to the local government's power supply requirements)
Oscillating Frequency1~20KHzIt will be made based on each customer's heat treatment requirements of workpieces
Duty Cycle100% full loading (The machine can work 24hours continuously.)
Net Weight24KGs24KGs34KGs36KGs51KGs79KGs94KGs135KGs280KGs300KGs
Dimension29x47x4829x47x5437x57x6742x89x7780×56×18080×56×180

Structures of medium frequency induction quenching equipment:

① Induction Heater: also called electromagnetic induction heater, induction heating main control, induction heating main circuit control, etc.

② Induction Heating Coil: also called induction coil/heating coil

③ Temperature Control: can be installed on the induction heater box

④ External Control: PLC etc.




ZG-MF Series 15-300kw 1-20KHZ Medium Frequency Induction Heating Machine (Water Cooling)
