Medium Frequency Generator

Medium Frequency Generator

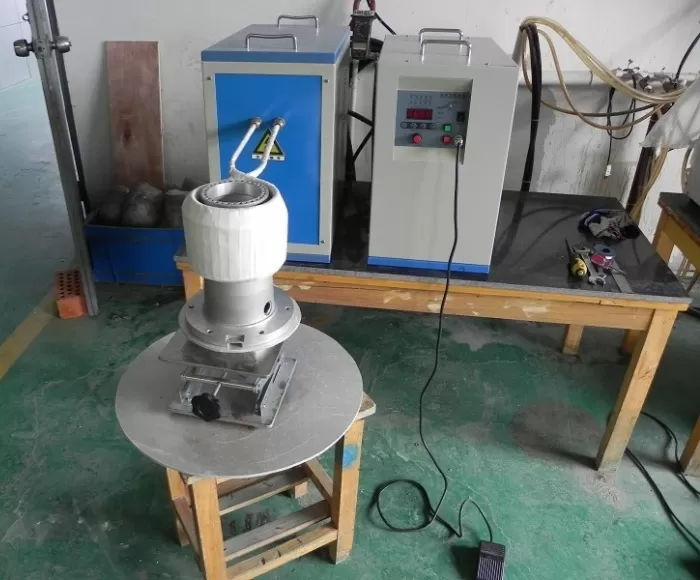

25KW Medium Frequency Induction Heating Machine
25KW Medium Frequency Induction Heating Machine
25KW Medium Frequency Induction Heating Machine

25KW Medium Frequency Induction Heating Machine

Descriptions

Model No.:ZG-MF25

Rated Power: 25kw, 380V-3P, or other 220V/440V/480V can be ordered

Main Function: heating all kinds of metal parts, thoroughtly heating and surface heating, hot forging, metal melting etc

Main Advantage: heating the metal parts from the core to surface evenly and thorough out

Main Components: MF Generator + Compensation Capacitor + (Customized Induction Coil)


APPLICATION

IGBT MF Induction Heating Generator Applications:

1. welding/brazing and annealing for spectacle frames and its spare parts;

2. Metal Forging & Casting Industries: smelting and melting for casting into other products in a certian shape or heating iron or steel bar to high temperature and then forging into the shapes of other products;

3. Electromechanical industry: silver brazing for metal joints, quenching and tempering for micro motor & shaft;

4. Wire Industry: wire strip annealing;

5. Mold preheating and hardening;

6. Toy Industry: winding thin metal sheet tempering.

25KW Medium Frequency Induction Heating Machine

MAIN FEATURES

Main Features:

1. Third generation current inverting technology is based on the second generation technology, soft and high speed switching technology and frequency tracing technology are used to maintain the smooth working at a large frequency range of 1 to 20KHZ.

2. With the third generation current inverting technology, parallel oscillating circuit is realized that leads the unique characteristics of medium frequency series generator.

3. With the third generation current inverting technology, working status of the IGBT can be improved largely, 100% duty cycle can be realized easily to let the machine to work 24 hours at the maximum power output.

4. With the third generation current inverting technology, the reliability of IGBT can be improved in a great step to decrease the repair largely.
25KW Medium Frequency Induction Heating Machine


TECHNICAL PARAMETER

 Technical Parameter

-1-MODEL NO:ZG-MF25
-2-INPUT VOLTAGE:380V-3P, 50/60HZ
-3-POWER:25KVA
-4-INPUT CURRENT:5-45A ADJUSTABLE
-5-MF. OUTPUT VOLTAGE:70-550V
-6-MAXIMUM TEMPERATURE TO:1500~2500℃
-7-APPLICATION:HEATING/QUENCYING/MELTING/BRAZING/HOT FORGING ETC.
-8-LOADING:100%
-9-COOLING MODE:WATER COOLING
-10-COOLING WATER CONSUMPTION:10L/H
-11-COOLING WTER TEMPERATURE: 5-50℃
-12-INPUT WATER PRESSURE:0.2Mpa
-13-POWER CONSUMPTION::~7KW/H
-14-RECOMMENDED TRANSFORMER:>20KVA
-15-SIZE & NET WEIGHT:MF GENERATOR: L52×W27×H45CM3/36KGSCOMPENSATION CAPACITOR:L55×W24×H48CM3/34KGS
-16-PACKAGE:WOODEN CASE/FRAME
-17-GROSS WEIGHT:80kgs
-17-DIMENSION:0.4CBM
