15KW Medium Frequency Induction Heating Power Generator
15KW Medium Frequency Induction Heating Power Generator

15KW Medium Frequency Induction Heating Power Generator

Descriptions

Model No.:ZG-MF15

Rated Power: 15kw

Main Function: pre-heating and thoroughly heating before rolling, forging, pipe bending and other processes, can be the power for melting and smelting

Main Advantage: Oscillation Working Frequency from 3Khz to 20Khz, heating the metal parts from the core to surface evenly and thorough out

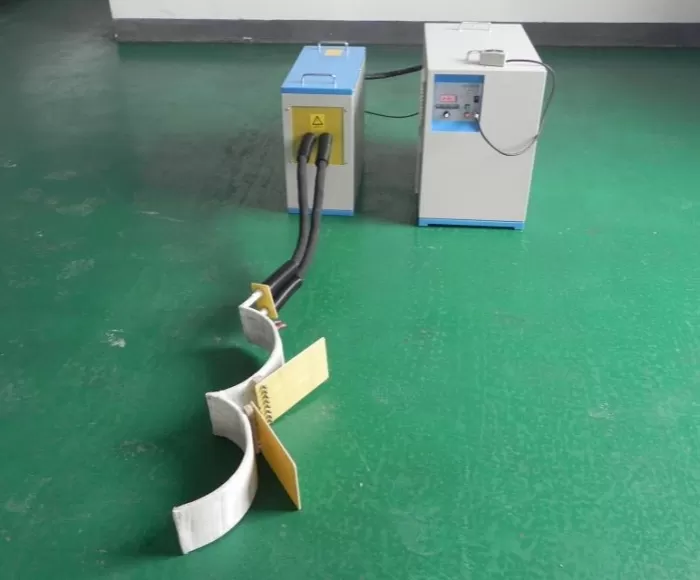

Main Components: MF Generator + Compensation Capacitor + (Customized Induction Coil)




APPLICATION

Why have we developed IGBT induction heating power?

With the rapid development of industrialization in our country, the field of induction heating has also developed rapidly. Due to environmental requirements and rising coal prices, using coking coal for heating not only does not meet environmental requirements, but also is very uneconomical in terms of price and economy. On the other hand, industrial heating also extensively uses intermediate frequency heating equipment with KGPS and controllable silicon as the main device. Low power factor consumes a lot of electricity. With the extension of the financial crisis, energy conservation, consumption reduction, and cost reduction have become a very urgent problem for small and medium-sized enterprises. Therefore, we have successfully developed the IGBT series energy-saving medium frequency induction heating power supply based on nearly 20 years of induction heating experience.

15KW Medium Frequency Induction Heating Power Generator

MAIN FEATURES

Main Features:

1, All-solid-state IGBT inverter and functional regulation, soft-switching dual resonant frequency control auto- tracking technology are fundamental assurance of high performance and high reliability.

2, It is small in size & light in weight, saving working space for our customers.

3, High efficiency & energy-saving, to keep high power factor and power efficiency when working.

4, Oscillation frequency from 1-20KHz, automatically tracking applicable frequency.

5, 100% full loading, 24 hours continuously work.

6, Constant output voltage, output power control all functions.

7, Frequency, power, voltage and current are all displayed.

15KW Medium Frequency Induction Heating Power Generator

TECHNICAL PARAMETER


 Technical Parameter

-1-MODEL NO:ZG-MF15
-2-INPUT VOLTAGE:380V-3P, 50/60HZ
-3-POWER:15KVA
-4-INPUT CURRENT:5-30A ADJUSTABLE
-5-MF. OUTPUT VOLTAGE:70-520V
-6-MAXIMUM TEMPERATURE TO:1500~2500℃
-7-APPLICATION:HEATING/QUENCYING/MELTING/BRAZING/HOT FORGING ETC.
-8-LOADING:100%
-9-COOLING MODE:WATER COOLING
-10-COOLING WATER CONSUMPTION:4L/H
-11-COOLING WTER TEMPERATURE: 5-50℃
-12-INPUT WATER PRESSURE:0.2Mpa
-13-POWER CONSUMPTION::~7KW/H
-14-RECOMMENDED TRANSFORMER:>20KVA
-15-SIZE & NET WEIGHT:MF GENERATOR: L52×W27×H45CM3/30KGSCOMPENSATION CAPACITOR:L55×W24×H48CM3/34KGS
-16-PACKAGE:WOODEN CASE/FRAME
-17-GROSS WEIGHT:80kgs
-17-DIMENSION:0.4CBM
