2.5KW~20KW 220V-1P wall-mounted 10KW~ 240KW 380V-3P Cabinet induction water heater/boiler

2.5KW~20KW 220V-1P wall-mounted 10KW~ 240KW 380V-3P Cabinet induction water heater/boiler

Descriptions

Model No.: ZG-EH2.5HB-H, ZG-EH3.5HB-H, ZG-EH05HB-H, ZG-EH06HB-H, ZG-EH08HB-H, ZG-EH10HB-H, ZG-EH15HB-H, ZG-EH18HB-H, ZG-EH20HB-H

Rated Power: 2.5kw~20kw

Main Function: PLC & touch screen, WiFi control, heating temperature and time can be set up, silent working mode which suitable for household usage.

Main Advantage: energy saving at least 30%~50% , heat normal water hot water by induction heating will be no pollution to the environment.

Inquire Now

APPLICATION

Our wall mounted 10KW-240KW induction hot water boilers are designed for efficient room warming and hot water supply. With electromagnetic induction heating, smart temperature control, WiFi remote operation, and multiple protection systems, these boilers offer a compact and energy-saving solution for residential and commercial heating projects. Available in 220V single-phase and 380V three-phase models, the range covers different heating areas, installation conditions, and power requirements.

The 10KW-240KW induction hot water boiler is using induction heating to heat water instead of old coal heating boiler or resistance wire heating for offering hot water to circulate through the wall pipes or underfloor pipes for warming the room space. It can offer hot water for any cases which need hot water like bathroom shower or swimming pool etc.

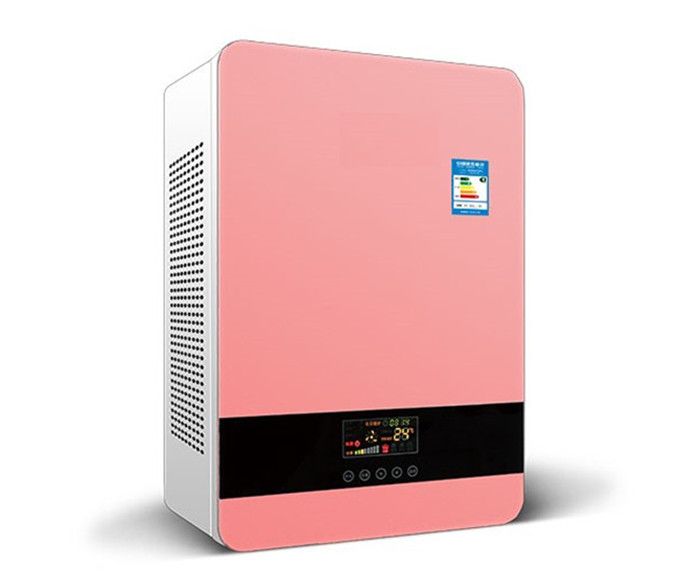

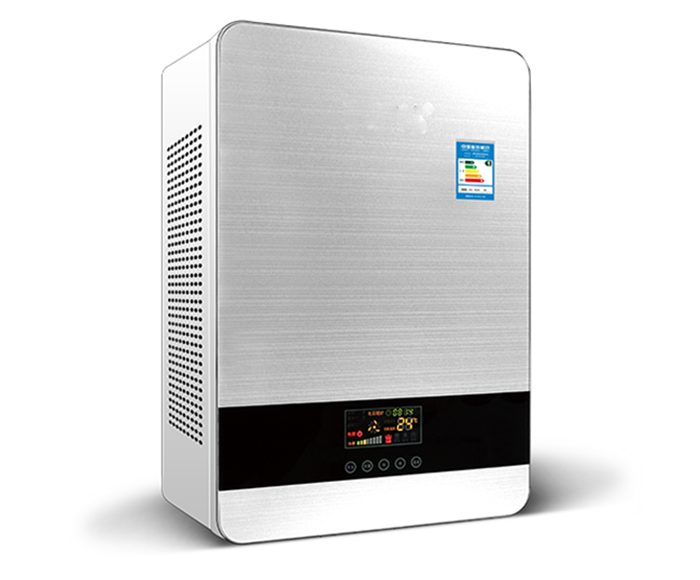

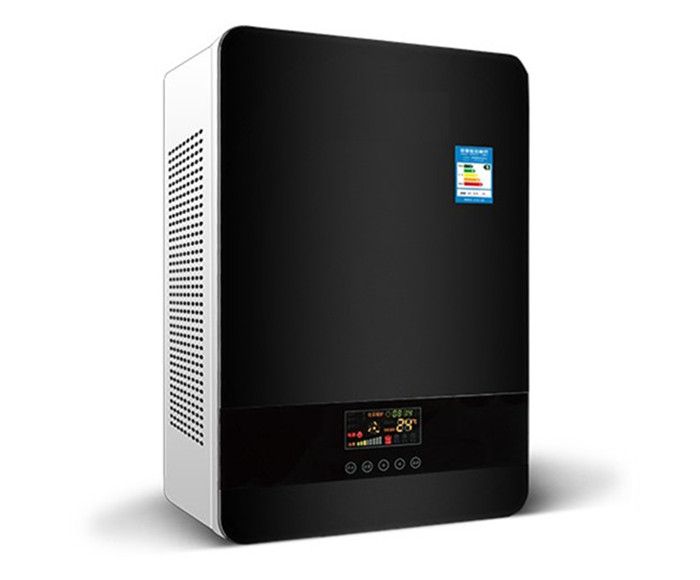

2.5KW~20KW 220V-1P wall-mounted induction water heater/boiler

MAIN FEATURES

1, Electromagnetic induction heating water heater and induction heating boiler has a special design of the heating coil by using the anti-electric wall which can separated water and electricity completely, that means, there is no electricity in the water at all, totally safe!

2, Electromagnetic induction water heater boiler has double heating bodies by using high-precision magnetic stainless steel, which is the most advanced heating technology up to now and its service life can be more than 30 years.

3, Heating speed of electromagnetic induction water heater boiler is very quick! The temperature of the output hot water can go up to 60 degrees in 1 minute. Of course, the heating temperature can be controlled by setting.

4, Two steps of Installation: simple and convenient!

Step 1: connected to the water pipes;

Step 2: connected to the power.

5, High frequency electromagnetic induction boiler has built in protection functions: low voltage protection, high voltage protection, short circuit protection, dry protection, over-temperature protection, antifreeze protection.

6, High frequency electromagnetic induction boiler has no environment pollution because it has no chemical reaction in the heating process, and no noise,no smell and no dust at all.

2.5KW~20KW 220V-1P wall-mounted induction water heater/boiler

TECHNICAL PARAMETER

1, 220V-1P Household-type, wall-mounted induction water heater/boiler

MODEL NO	POWER	INPUT VOLTAGE	ROOM SPACE( SQ. M)	LIVE WIRE(SQ. MM)	AMPERE METER	LEAKAGE PROTECTION
ZG-EH2.5HB-H	2.5KW	220V-1P,50/60Hz	5-20	≧2.5	10~40A	15A
ZG-EH3.5HB-H	3.5KW	220V-1P,50/60Hz	30-50	≧2.5		15A
ZG-EH05HB-H	5KW	220V-1P,50/60Hz	50-80	≧2.5		30A
ZG-EH06HB-H	6KW	220V-1P,50/60Hz	50-80	≧2.5		30A
ZG-EH08HB-H	8KW	220V-1P,50/60Hz	80-100	≧4		30A
ZG-EH10HB-H	10KW	220V-1P,50/60Hz	120~140	≧4	15~60A	32A
ZG-EH15HB-H	15KW	220V-1P,50/60Hz	150~180	≧6		40A
ZG-EH18HB-H	18KW	220V-1P,50/60Hz	180~200	≧6		63A
ZG-EH20HB-H	20KW	220V-1P,50/60Hz	200~240	≧6		63A

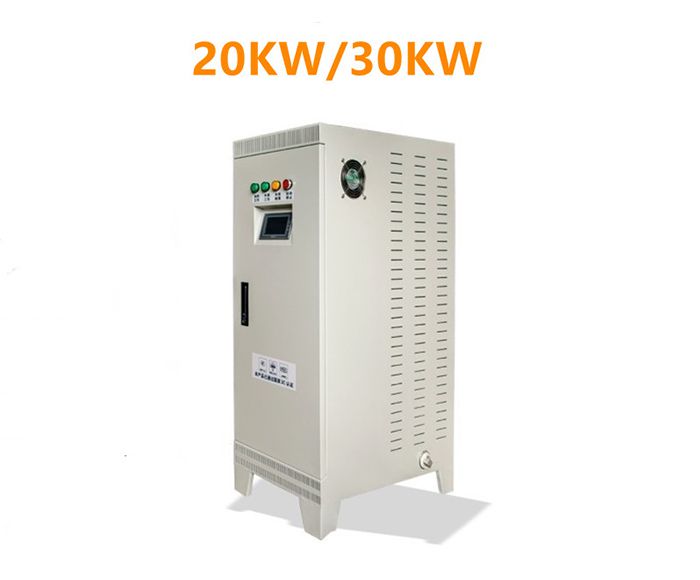

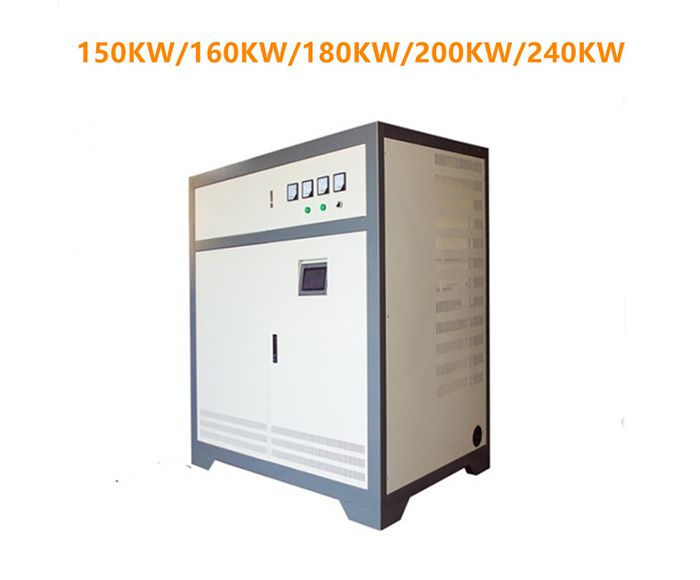

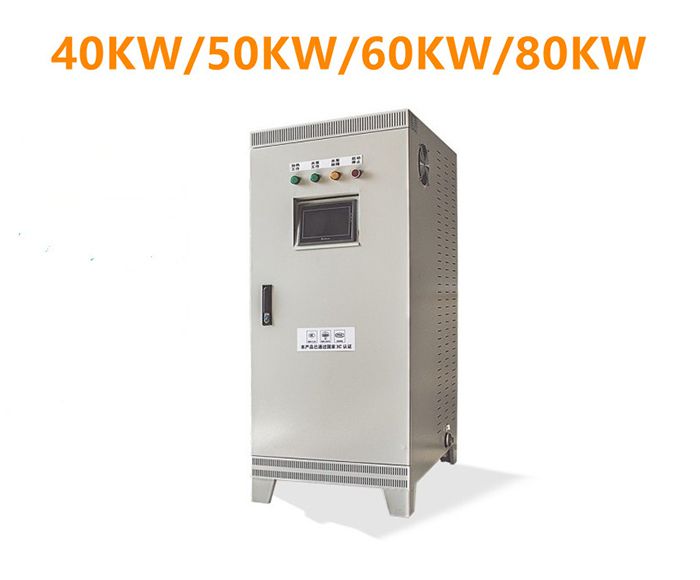

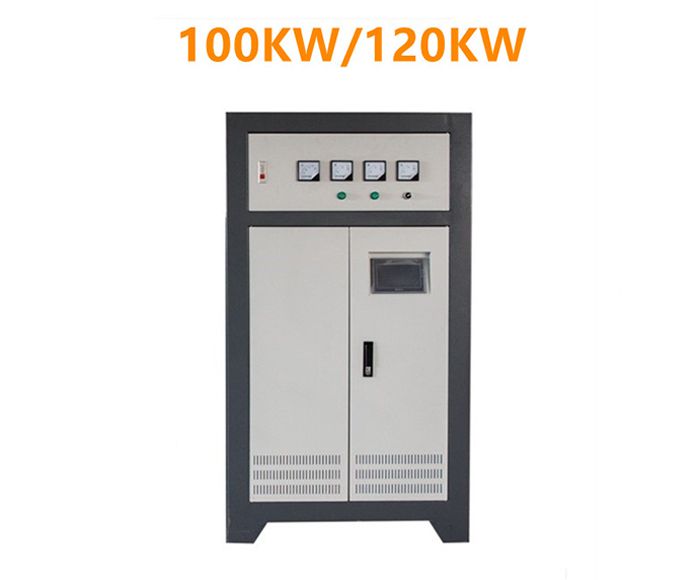

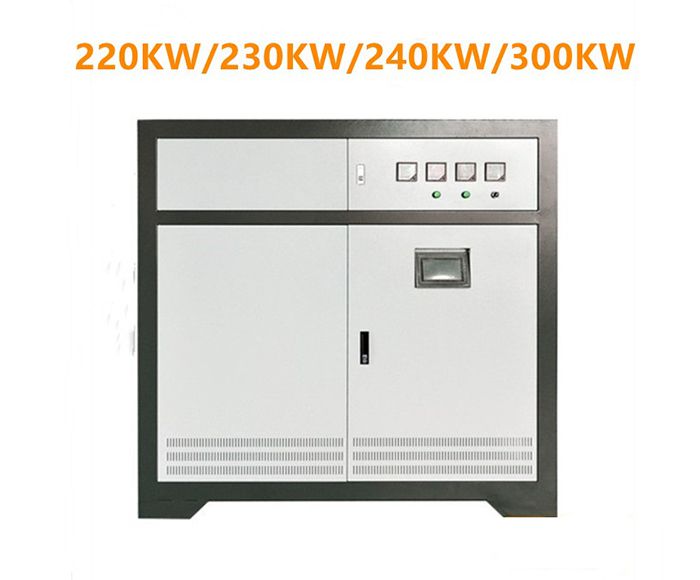

2, 380V-3P commercial-type, cabinet induction water heater/boiler

MODEL NO	POWER	INPUT VOLTAGE	ROOM SPACE( SQ. M)	LIVE WIRE(SQ. MM)	AMPERE METER	LEAKAGE PROTECTION
ZG-EH10HB-C	10KW	380V-3P,50/60Hz	100~120	≧4	10~40A	32A
ZG-EH12HB-C	12KW	380V-3P,50/60Hz	120~140	≧4		32A
ZG-EH15HB-C	15KW	380V-3P,50/60Hz	150~180	≧6		40A
ZG-EH18HB-C	18KW	380V-3P,50/60Hz	180~200	≧6	15~60A	63A
ZG-EH20HB-C	20KW	380V-3P,50/60Hz	200~240	≧6
ZG-EH25HB-C	25KW	380V-3P,50/60Hz	250~300	≧10
ZG-EH30HB-C	30KW	380V-3P,50/60Hz	300~360	≧10
ZG-EH40HB-C	40KW	380V-3P,50/60Hz	400~480	≧25	30~100A	100A
ZG-EH50HB-C	50KW	380V-3P,50/60Hz	500~600	≧25	30~100A	100A
ZG-EH60HB-C	60KW	380V-3P,50/60Hz	600~700	≧35	PLEASE CONSULT US	160A
ZG-EH8HB0-C	80KW	380V-3P,50/60Hz	800~900	≧35		250A
ZG-EH120HB-C	120KW	380V-3P,50/60Hz	1200~1500	≧50		250A
ZG-EH180HB-C	180KW	380V-3P,50/60Hz	1800~2200	≧75		400A
ZG-EH240HB-C	240KW	380V-3P,50/60Hz	2400~2800	≧95		400A

2.5KW~20KW 220V-1P wall-mounted induction water heater/boiler

FAQ

Q: What is an induction water boiler?
A: It is a heating system that uses electromagnetic induction technology to heat water for room warming, floor heating, and hot water supply.

Q: What are the advantages of an induction boiler?
A: Fast heating, energy saving, low noise, intelligent control, and multiple safety protections.

Q: What voltage options are available?
A: 220V single-phase and 380V three-phase models are available.

Q: Can it be used for floor heating?
A: Yes. It is suitable for hydronic floor heating systems and radiator heating systems.

Q: Does the boiler support smart control?
A: Yes. Some models support PLC touch screen and WiFi remote control.

Q: Is the induction boiler energy efficient?
A: Yes. Electromagnetic induction heating reduces heat loss and improves heating efficiency.

Q: What safety protections are included?
A: Over-temperature, over-voltage, dry heating, leakage, and anti-freeze protection.

Q: What applications is it suitable for?
A: Homes, apartments, hotels, offices, schools, commercial buildings, and hot water systems.

Q: Do you support wholesale and bulk orders?
A: Yes. We support distributors, contractors, and global project buyers with bulk supply and technical support.
