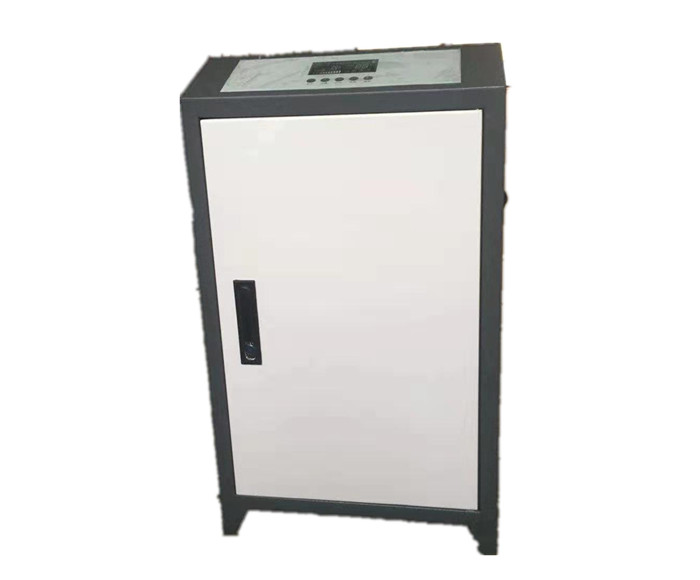

10–20 kW 380V Three-Phase Cabinet-Type Induction Heating Boiler
HITFAR's 10–20 kW induction heating water boiler is a cabinet-type electromagnetic induction water boiler designed to heat circulating water for room-warming systems. The heated water can circulate through underfloor heating pipes or wall-mounted pipework to distribute heat throughout the space. The range includes five rated-power options: 10 kW, 12 kW, 15 kW, 18 kW and 20 kW, with 380V three-phase input.
Induction room heater, is high frequency of electromagnetic induction heating, water and electricity separate completely. Induction water heater has never leakage by using the anti-electric wall and leakage protection switch. Induction heating furnace equips with intelligent automatic temperature control operation to avoid electric bar leakage and other unsafe factors. HITFAR's induction heating water boiler is Suitable for home, apartment or hotel room heating needs, including:
· Residential heating: Houses and apartments with suitable circulating-water heating systems.
· Hotel and accommodation heating: Room-heating projects using underfloor heating or compatible wall-mounted pipework.
· Small commercial buildings: Offices, shops and other spaces where the calculated heating load falls within the equipment’s capacity.
· Underfloor heating systems: Applications that distribute heat through water-circulation pipes beneath the floor.
· Wall-pipe heating systems: Buildings that use compatible water-based wall heating circuits.
MAIN FEATURES

Key Features of HITFAR 10–20 kW Induction Heating Boiler
10KW~20KW electromagnetic induction heating warming furnace can be worked as a single heating system or several units be connected in series to form a heating system to meet a larger heating load, which fully matching the different heating needs of various occasions. HITFAR Induction Heating Waming Furnace has the characteristics of stable operation, high thermal efficiency, strong pressure bearing. Relying on the principle of electromagnetic heating, induction room heater can make full use of the cheap low electricity price to achieve the purpose of economic operation, and has good economic and social benefits.
· Five power options: Choose from 10 kW, 12 kW, 15 kW, 18 kW and 20 kW models for different heating requirements.
· Electromagnetic induction heating: Generates heat through an induction heating body and transfers it to circulating water.
· Cabinet-type design: Designed for installation as part of a compatible hydronic heating system.
· PLC and touch-screen control: Supports convenient equipment operation and temperature management.
· Optional Wi-Fi remote control: Provides a remote-control option for configurations that support this function.
· Dual heating-body design: Incorporates a dual heating-body arrangement for the heating process.
· Magnetic stainless-steel heating body: Uses a high-precision magnetic stainless-steel heating body. The service life of more than 30 years and circulating water also magnetized.
· IGBT power-control technology: Incorporates German IGBT modules in the core circuit. 20% energy saving more than the electric tube, electric rods and other heating elements.
· Multi-unit system configuration: Multiple units can be connected in series when a project requires a larger heating capacity, subject to electrical and hydraulic system design.
How Does an Electromagnetic Heating Boiler Work?
An electromagnetic induction heating boiler generates heat through electromagnetic induction. The induction heating body produces heat, which is transferred to water circulating through the heating system.
The heated water then flows through the connected underfloor heating pipes or wall-mounted pipework, distributing heat throughout the building. This hydronic heating method differs from a portable electric room heater, which directly heats the surrounding air.
For effective operation, the induction water boiler must be matched to the heating circuit’s required water temperature, flow rate, working pressure and total heating load. The electrical supply and control configuration must also meet the requirements of the selected model.
TECHNICAL PARAMETER

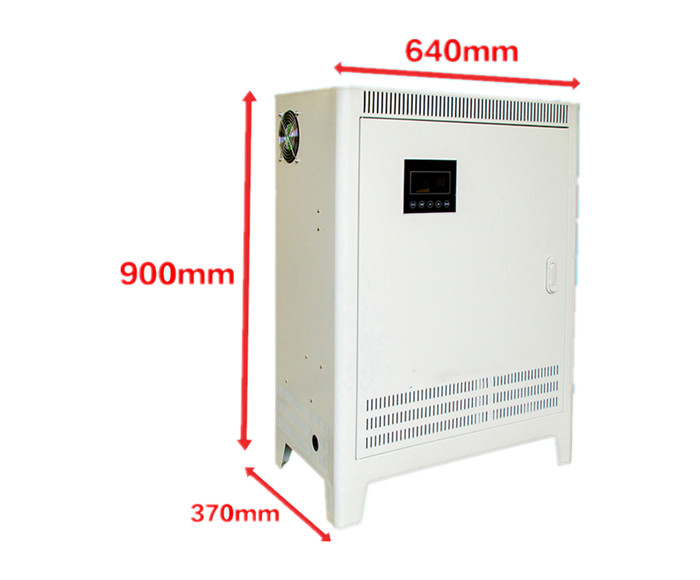

Basic Technical Parameter for 380V-3P Cabinet-type induction water heater/boiler
| Model | Power | Rated Input Power | Heating Area (M2) | Input Live Wire(MM2) | Electricity Meter | Leakage Breaker |
| ZG-EH10-HB-C | 10KW | 380V-3P,50/60Hz | 100~120 | ≧4 | 10~40A | 32A |
| ZG-EH12-HB-C | 12KW | 380V-3P,50/60Hz | 120~140 | ≧4 |
| ZG-EH15-HB-C | 15KW | 380V-3P,50/60Hz | 150~180 | ≧6 | 40A |
| ZG-EH18-HB-C | 18KW | 380V-3P,50/60Hz | 180~200 | ≧6 | 15~60A | 63A |
| ZG-EH20-HB-C | 20KW | 380V-3P,50/60Hz | 200~240 | ≧6 |
The maximum power can be higher to 20 kw of 220 v, 1 phase. Please consult us for details.
How to Choose the Right Cabinet Type Electromagnetic Induction Heating Water Boiler
Selecting the right induction heating water boiler involves more than matching the rated power to the floor area. The following factors help determine the appropriate model and system configuration.
1. Calculate the Building’s Heating Demand
Start with the heated floor area, building type, insulation level, window performance, ceiling height and local winter design temperature. These factors influence the amount of heat required to maintain the desired indoor temperature.
2. Match the Heating Capacity to the Heating Terminals
Underfloor heating and wall-mounted heating pipework can have different water-temperature and flow-rate requirements. Confirm that the selected induction water boiler is compatible with the planned heating terminals and the required supply-water temperature.
If the project uses radiators or fan-coil units, verify their operating requirements with the supplier before finalizing the equipment selection.
3. Verify the Electrical Supply
This cabinet-type induction room heater series is specified for 380V three-phase input at 50/60Hz. Check the available supply at the installation site and confirm the required current rating, cable size, circuit breaker and electrical protection.
If a project requires 220V single-phase input, confirm the availability of a compatible model separately rather than assuming that the same specifications apply to this series.
4. Review the Water Circuit
Confirm the required flow rate, working pressure, water connections and circulation arrangement. If the project uses an existing hydronic system, review its compatibility before installation.
Also establish whether circulation pumps, expansion vessels, buffer tanks, valves and other accessories are included in the intended supply package or need to be provided separately.
5. Specify the Required Control Functions
PLC and touch-screen control are relevant to routine operation and temperature management. If remote operation is required, specify Wi-Fi functionality during the quotation process.
Clarify the functions needed for the project, including temperature adjustment, operating schedules and any required external control integration.
6. Evaluate Single-Unit and Multi-Unit Configurations
For larger heating loads, multiple induction water boilers may be considered. The final arrangement should account for the required heating output, hydraulic balance, electrical capacity and control strategy.
Ask for a proposed configuration when the project requires more capacity than one unit can provide.
7. Check Local Installation Requirements
Electrical installation, water-system design and building regulations vary by market. Confirm the applicable requirements before ordering, particularly where the equipment will be integrated into an existing heating system.
Frequently Asked Questions
1. What Power Options Are Available for This Induction Room Heater?
The series includes 10 kW, 12 kW, 15 kW, 18 kW and 20 kW models. The appropriate option depends on the building’s calculated heating demand and the requirements of the connected hydronic system.
2. What Is the Power Supply Requirement?
The cabinet-type series uses a specified input supply of 380V three-phase, 50/60Hz. Confirm the electrical requirements for the selected model, including rated current and circuit protection, before installation.
3. Can This Induction Water Boiler Be Used with Underfloor Heating?
Yes, the equipment is intended for compatible circulating-water heating systems, including underfloor heating and wall-mounted heating pipework. The required water temperature, flow rate and working pressure should be checked against the heating-system design.
4. How Much Floor Area Can a 10–20 kW Induction Room Heater Heat?
The indicative heating-area range is approximately 100–120 m² for the 10 kW model and 200–240 m² for the 20 kW model, with intermediate ranges for the 12, 15 and 18 kW models. Actual performance depends on local climate, insulation, building heat loss and operating conditions.
5. Can Multiple Induction Water Boilers Be Connected Together?
Multiple units can be considered for projects requiring a larger heating capacity. The final number of units and connection arrangement should be determined according to the heating load, hydraulic design, electrical capacity and control requirements.
6. Is Wi-Fi Remote Control Available?
Wi-Fi remote control is an optional function for compatible configurations. Confirm availability and the supported functions when specifying the required model.
7. What Information Should I Provide When Requesting a Quotation?
Provide the installation location, heated floor area, available electrical supply, heating-terminal type and required water-system parameters. If available, include the estimated heat loss, target indoor temperature and any specific control or accessory requirements.
Request a Quote for Your 10–20 kW Induction Room Heater Project
Looking for an induction water heater for a residential, accommodation or small commercial hydronic heating project? Contact HITFAR with your project requirements to discuss the appropriate model and equipment configuration.
Explore our Induction Water Boiler for Warming range to compare available equipment for different heating requirements. For smaller installations, you can also review our wall-mounted induction water boiler, or compare a 20–30 kW cabinet-type induction water boiler for projects requiring a higher rated output.
