25KW/30-100KHz High Frequency Induction Heating Machine (Water-cooled Type)

Descriptions

Model No.: ZG-HF25 (Unit or Split Type for Free Choice)

Input Power: 220V-1P or 380V-3P

Output Working Power: 5-25kw adjustable

Main Function: heating, quenching or hardening, tempering, annealing and other heat treatment for all kinds of small metal parts

Main Advantage: the maximum temperature can reach 1500-2500 °C.

Main Components: Induction Heating Controller + Induction Coil

Inquire Now Next Product

APPLICATION

1, High frequency induction heating machine is widely used in heat treatment of various metal hardware and tools.

2, All kinds of hardware brazing, welding, welding.

3, Steel pipe copper pipe welding.

4, Quenching for mechanical parts and auto parts.

5, Stainless steel annealing and demagnetization.

6, Steel or iron bars heating to red hot before forging.

7, Steel or iron pipes or other parts heating before pushing into elbow stretch.

8, Special heating according to various workpieces.

9, Melting, smelting, etc. of small amounts of precious metals and alloys.

10, Partial heating, inner hole heating, or overall heating of various workpiece.

11, Surface hardening or overall diathermy.

25KW/30-100KHz High Frequency Induction Heating Machine (Water-cooled Type)

MAIN FEATURES

(1) 25KW/30-100KHz High Frequency Induction Heating Machine can be installed induction coil which made according the shapes of metal parts.

(2) 25KW High Frequency Induction Heater can be working 24 hours per day.

(3) The heating power can be controlled by a switch on the control panel from 5kw to 25kw.

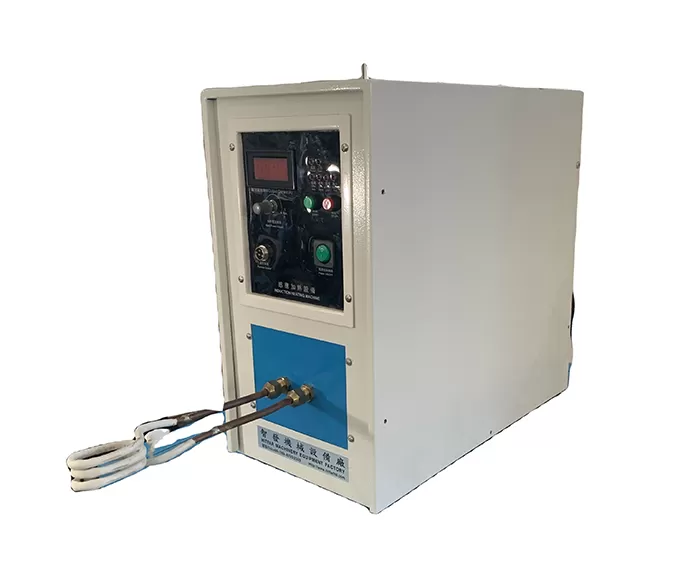

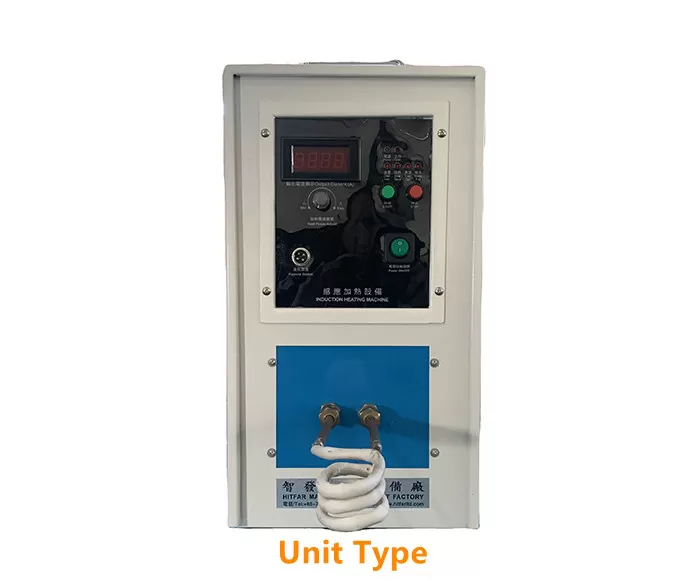

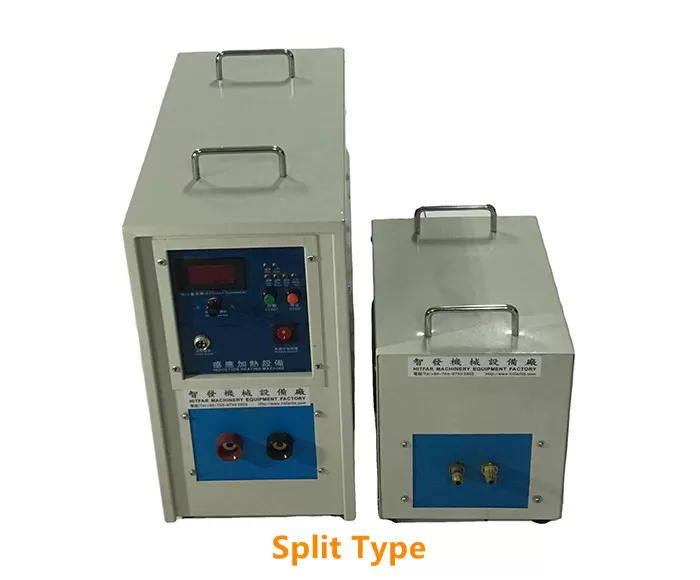

(4) 25KW High Frequency Induction Heating Machine can be made of unit-one type or split type as you like.

(5) The input power can be made of single phases or three phases as customer's actual requirement.

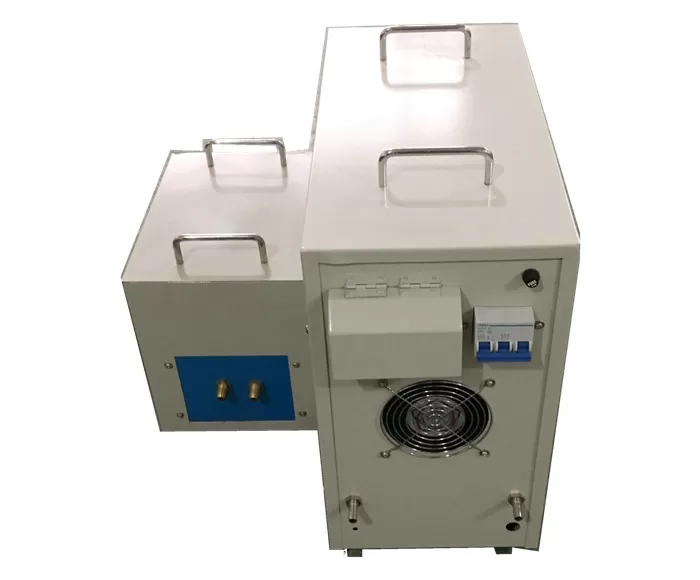

(6) Net weight of main controller only around 18kgs, but the split type has a heating station or we can call it a transformer.

25KW/30-100KHz High Frequency Induction Heating Machine (Water-cooled Type)

TECHNICAL PARAMETER

-1-	INPUT POWER:	220V-1P or 380V-3P, 50/60Hz
-2-	WORKING VOLTAGE RANGE:	Single phase of 180V~240V or 3phases of 320V~ 420V
-3-	OSCILATION FREQUENCY:	30-100KHZ
-4-	HEATING TIME SETTING:	1-99S OR N
-5-	RETAIN TIME SETTING:	1-99S OR N
-6-	MAXI WORKING. POWER:	5~15KW adjustable
-7-	LOADING:	95%
-8-	COOLING WATER:	4L/min(0.2mpa)
-9-	COOLING WATER TEMPERATURE:	5-50℃
-10-	WORKPIECE:	BRAZING/SOLDERING/HEATING
-11-	APPLICATION:	HEATING/BRAZING/SOLDERING/WELDING
-12-	GROSS WEIGHT(Unit Type):	30KG(INCLUDING WOODEN CASE)
-13-	PACKAGE DIMENSION (Unit Type):	600350550mm³
