100KW/30-50Khz High Frequency Induction Heating Machine (Water-cooled Type)
100KW/30-50Khz High Frequency Induction Heating Machine (Water-cooled Type)

100KW/30-50Khz High Frequency Induction Heating Machine (Water-cooled Type)

Descriptions

Model No.: ZG-HF100

Input Power: 380V-3P (415V/440V/480V-3P can be made)

Output Working Power: 100kw adjustable

Main Function: Heat treatment like quenching, annealing, metal diathermy forging, extrusion forming, brazing .

Main Advantage: 75% electricity power will be saved than the original tube high frequency machine, gas stove, electric stove, etc.

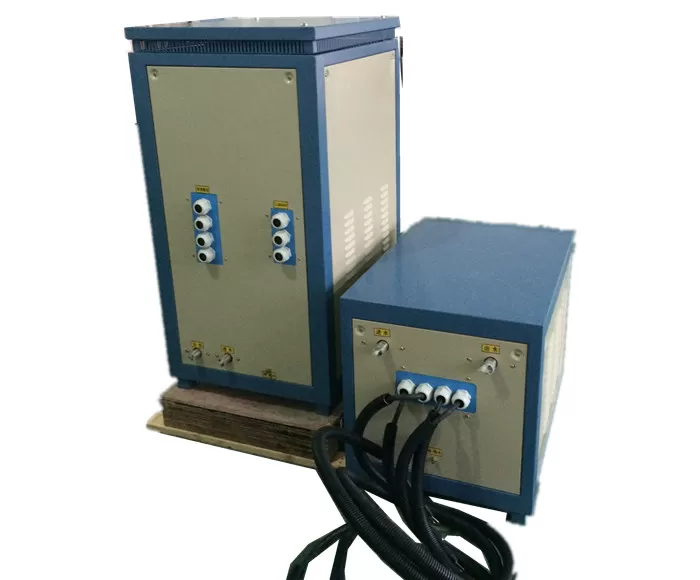

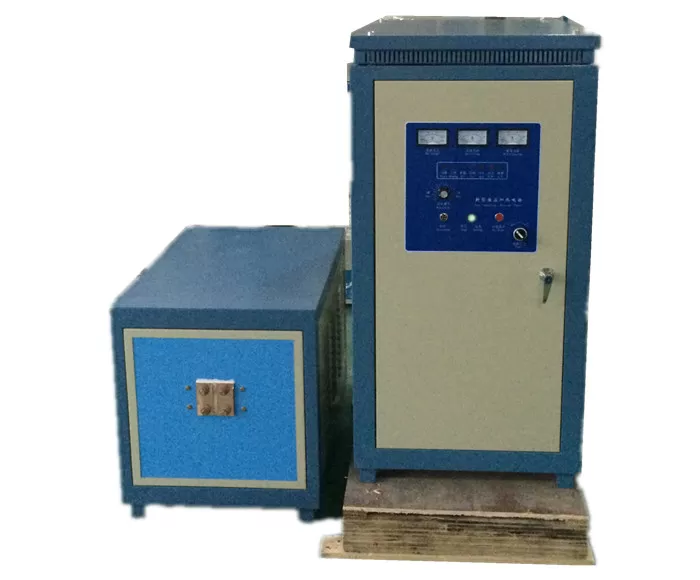

Main Components: Main Power Controller + Heating Station (transformer) + Induction Coil

APPLICATION

1, Hot upsetting for metal parts of standard dimensions.

2, Quenching or hardening for shafts, auto parts, gears and sprockets.

3, Forging for large size of metal parts like steel bars.

4, Surface hardening for axes, bearings and nuts.

5, Heating Steel rods to red thoroughly before punching.

6, Tempering or softening for copper wire or steel wires and other cables too.


100KW/30-50Khz High Frequency Induction Heating Machine (Water-cooled Type)

MAIN FEATURES

1. 100KW Induction Heating Machinewith 30-50Khz high frequency has a very quick heating speed, and very good at heating big parts and can make the heating time not exceed 10 seconds per piece, so that the oxide layer is very proper. Which is far better than the traditional heat treatment process.

2. 100KKW 30-50Khz High Frequency Induction Heating Machine can be freely controlled to heat the actual position, which meets the heat treatment requirements of special shaped metal parts like gears, sprocket . We can only heat the tooth or partial bars.

3. The energy saving rate around 75% compared to the original tube high frequency machine, gas stove, electric stove, etc.

4, The operation steps are very simple, and any workers can learn it immediately after several minutes teaching.

5, Very safe to workers and engineers: there is no flame at all, and no high temperature bring to the surrounding space, and no high voltage (the working voltage of the induction coil is 36V) on the coil.


100KW/30-50Khz High Frequency Induction Heating Machine (Water-cooled Type)

TECHNICAL PARAMETER
(1)INPUT POWER:380V-3P, 50/60Hz
(2)WORKING VOLTAGE RANGE:380V±10%
(3)OSCILATION FREQUENCY:30-80KHZ
(4)HEATING TIME SETTING:1-99S OR N
(5)RETAIN TIME SETTING:1-99S OR N
(6)MAXI WORKING OUTPUT POWER:100KW
(7)LOADING:100%
(8)COOLING WATER:18L/min(0.2mpa)
(9)COOLING WATER TEMPERATURE:5-50℃
(10)WORKPIECE:GEARS, SPROCKET, ANY METAL PARTS
(11)APPLICATION:HEATING, HARDEINGING, QUENCHING
(12)MAIN POWER CONTROLLER89KG
(13)HEATING STATION65KG
(14)DIMENSION:MAIN POWER CONTROLLER:850*560*1150mm3HEATING STATION:840*540*860mm3
