1. Understanding the Product and Its Features

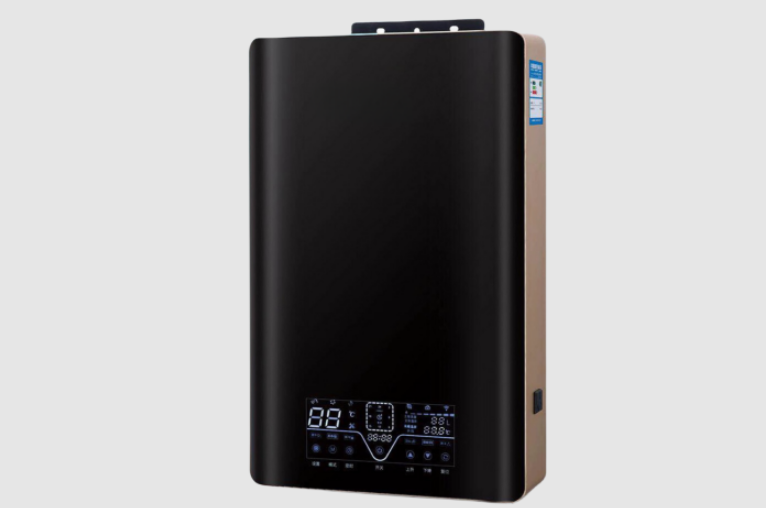

Induction water heaters, such as the 4–15 kW 220V single-phase wall-mounted model, use high-frequency current to induce eddy currents inside the heating coil. This causes the steel pipe itself to heat up instantly, allowing water to pass through and heat rapidly. With an electrical insulation layer as thick as 20 mm, these units offer reliable leak prevention and deliver heating efficiency exceeding 97%.
They are widely used for household heating and hot water supply, offering high efficiency, low noise, and at least 30% electricity savings compared to traditional models.
2. Common Hazards That May Cause Accidents
1. Electrical Safety Issues
Even though these systems use complete water-electricity separation, internal overload, leakage, or grounding faults may still cause short circuits and, in extreme cases, electrical fires.
2. Abnormal Pressure or Temperature
If the internal pressure exceeds 0.2 MPa or temperature goes beyond 85°C, the unit may be damaged, leading to a risk of burns or scalding.
3. Dry Heating or Cooling System Failure
If there is insufficient water or the cooling system fails, the unit may overheat or even rupture.
4. Improper Installation or Repairs
Unprofessional installation, incorrect wiring, faulty mounting, or loose plumbing connections can all create serious safety hazards.
3. 7 Practical Tips for Safe Usage
| No. | Safety Tip | Why It Matters |
|---|
| 1 | Have it installed by a professional | Ensures correct electrical connections, proper grounding, and secure wall mounting. |
| 2 | Use the correct power input | Operates on 220V single-phase power with ≥18A capacity (for 4kW unit), ensuring stable operation. |
| 3 | Ensure proper cooling system function | Running the heater with no water flow or cooling can cause rapid overheating and failure. |
| 4 | Check protective devices regularly | Includes protection against leakage, dry heating, overpressure, and overheating. Replace any faulty components immediately. |
| 5 | Use in suitable environments | Avoid placing the unit in areas with excessive heat, humidity, or dust, which can lead to corrosion or damage. |
| 6 | Choose the right power level | Match the heater to the room size (e.g., 60–100 m²). Oversized units may increase the risk of accidents. |
| 7 | Follow the user manual carefully | The product includes PLC and Modbus control. Set multi-stage timing and temperature functions correctly. |
4. Troubleshooting and Maintenance Tips
Restart after turning off power: If an error occurs, shut off power and restart after cooling.
Perform regular maintenance: Clean dust buildup, check the leakage protector, and flush the cooling system.
Replace aging components in time: Such as heating coils, capacitors, and cables.
Use original factory parts: Ensures safety and compatibility.
5. Why Induction Heating is a Safe and Worry-Free Choice
High-frequency induction heaters come with intelligent PLC control systems. These systems allow for adjustable power, timed heating, real-time monitoring of temperature and flow, and multiple safety protections.
With a fully sealed design, no open flames, no emissions, and silent operation, these heaters avoid the risks associated with traditional gas boilers or electric resistance heating—such as fire, gas leaks, or worn-out heating elements.
6. Conclusion
To use a water induction heater safely and effectively, you must:
Select the right power level → Have it professionally installed → Connect power and grounding properly → Check protection functions regularly → Maintain the cooling system and keep the unit clean.
With built-in safety controls and good usage habits, you can enjoy safe, energy-efficient, and reliable hot water and heating.
