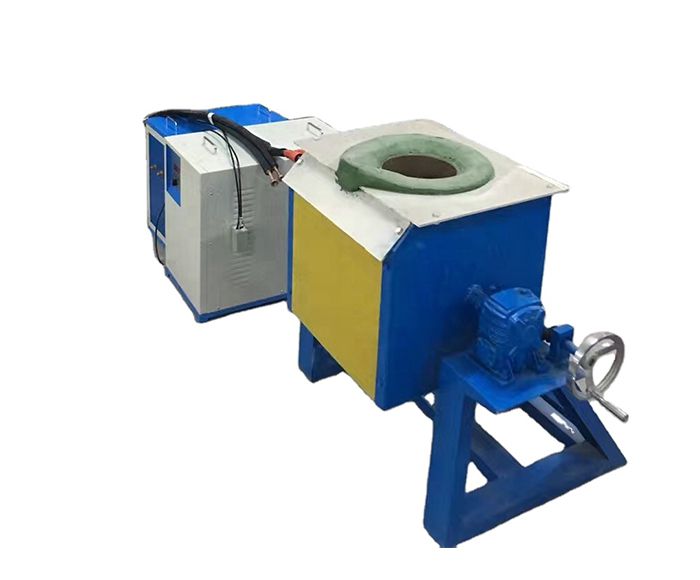

15-300kw 1-20Khz Medium Frequency Induction Melting Furnace with Tilting Pouring Device

Descriptions

Subject: ZG-MFM series 1-20Khz IGBT medium frequency induction melting furnace with manual, electrical or hydraulic tilting pouring system and stand.

Inquire Now
Share:
APPLICATION

The medium frequency induction furnace operates with high electrical and thermal efficiency, ensuring rapid melting with minimal power consumption. Its flexibility allows for easy implementation of process automation, catering to diverse production needs. With special power-saving features, this induction melting furnace slashes energy costs by up to 60% compared to traditional machines, making it a cost-effective solution for metal heating requirements.


Medium frequency induction furnace applications

1. Melting and smelting, refining and purifying for previous metals like gold, silver, copper, bronze, IGBT mediuum frequency generator power can be 15kw to 160kw seperately with a capacity from 3KGs to 500KGs;

2. Melting and smelting for ferrious metals like steel, iron and stainless, IGBT medium frequency generator power can be 15kw to 160kw seperately with a capacity from 1KGs to 150-200KGs;

3. Melting and smelting, refining and purifying for low melting temperature metals like zinc, tin etc, IGBT mini MF induction furnace power can be 15kw to 160kw seperately with a capacity from 1KGs to 500KGs or bigger volume to 600KGs, 800KGs;

4. The melting materials can be broken bits, sediments, ashes, wires, or any other shapes.

5. MF melting furnace can also be used for heating molds, continuously annealing wires, preheat and other applications.

Medium Frequency Induction Furnace

MAIN FEATURES

1. Induction heating has the stirring effect which caused by the magnetic force, so the materials inside the induction coil  can be stirred during the melting processing and then decrese the floating of the flux and oxides, to produce high quality casting parts after melting;

2. Medium frequency generator has a wide frequency range from 1KHZ to 20KHZ, the working frequency of medium frequency furnace can be variety by changing the induction coil and volume of compensating capacitor according to the different melting material;

3. IGBT small MF induction melting furnace from Hitfar would be energy saving at least 20% than the SCR medium frequency furnace;

4. IGBT medium frequency induction melting furnace is smaller in dimensions and lighter in weight than SCR medium frequency furnace, but the melting capacity cannot be very big.

5. We have a lot of models IGBT medium frequency induction melting furnace, please check the below list.

6. IGBT MF heating furnaces are not only suitable for working in the factories, but also suitable for the college and researching companies.

Medium Frequency Induction Furnace

TECHNICAL PARAMETER
Model No. & descriptionMax. Input PowerMax. Melting Capacity
Steel/stainless steelGold/Silver/Brass/CopperAluminium
ZG-MFM1515KW Induction Melting Furnace15KVA3KGs10KGs3KGs
ZG-MFM2525KW Induction Melting Furnace25KVA5KGs20KGs5KGs
ZG-MFM3535KW Induction Melting Furnace35KVA10KGs30KGs10KGs
ZG-MFM4545KW Induction Melting Furnace45KVA18KGs50KGs18KGs
ZG-MFM7070KW Induction Melting Furnace70KVA25KGs100KGs25KGs
ZG-MFM9090KW Induction Melting Furnace90KVA40KGs120KGs40KGs
ZG-MFM110110KW Induction Melting Furnace110KVA50KGs150KGs50KGs
ZG-MFM160160KW Induction Melting Furnace160KVA100KGs250KGs100KGs
ZG-MFM240240KW Induction Melting Furnace240KVA150KGs400KGs150KGs
ZG-MFM300300KW Induction Melting Furnace300KVA200KGs500KGs200KGs


Medium Frequency Induction Furnace

The above table list shows the main models and recommended maximum melting abilities. The melting can be finished in 20minutes to 30minutes, but it needs 50 to 60 minutes if the first furnace when the mini MF furnace is cool at the end of previous working day, because the furnace need more time warm up again.

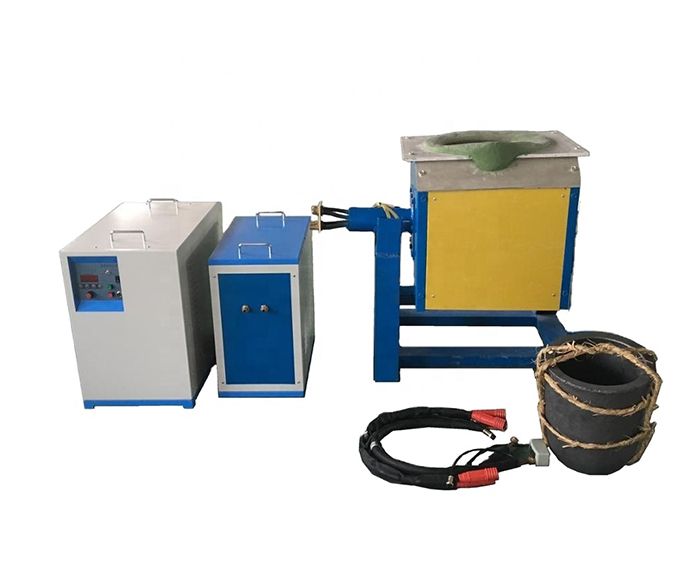

Structure of the IGBT Medium Frequency Induction Melting Furnace

The whole set of 1set IGBT Medium Frequency Induction Melting Furnace includes:

1. medium frequency generator: 1pcs

2. compensating capacitor: 1pcs

3. melting furnace: including induction coil, furnace body with insulation, stands, and supporting devices. Three types of melting furnaces: tilting furnace, push-up furnace and stationary furnace. We have 3 kinds of titling furnace: manual tilting furnace, electrical tilting furnace and hydraulic tilting furnace.

4. water cooling cables: 2pcs

5. power connecting wires: 2pcs

6. crucible or melting pot: 1pcs

7. other support devices can be ordered: infrared temperature controller, normal temperature controller with thermocouple sensor.
