Aluminium Melting Furnace

Aluminium Melting Furnace

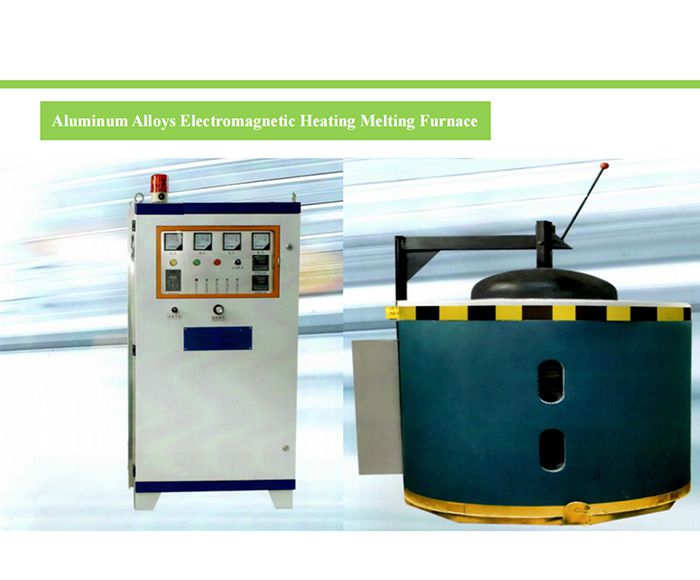

ZG-EHL Aluminum Alloys Induction Melting Furnace (electromagnetic heating, water-cooled)

ZG-EHL Aluminum Alloys Induction Melting Furnace (electromagnetic heating, water-cooled)

Descriptions

Model No.: ZG-EHL150, ZG-EHL300, ZG-EHL450, ZG-EHL600

Rated Power: 30-120KW

Main Function: Any metals of melting point lower than 850C degrees.

Main Advantage: energy saving at least 30%~80%.

Main Components: Main Controller + Water cooled Induction Coil + Temperature Controller + Melting Pot (Crucible)

Inquire Now
Share:
APPLICATION

1, Aluminium and its alloys melting;

2, Any metals of melting point lower than 850C degrees.

3, Holding temperature after melting.

4, Melting before casting

MAIN FEATURES

1. Safe and Reliable

Crucible rupture can still be produced continuously within 6 hours

2. Good Quality

Non-contact heating due to electromagnetic stirring, greatly reduces various impurityies in the aluminium liquid, and the composition of the aluminium liquid is more uniform, and there is no phenomenon of bottoming and scaling.

3. Less Loss

The aluminium burning loss is less than 0.1%, and the alumnium sla has no fuel gas an no pulverization.

4. Energy Saving

It saves more than 30% compared to ordinary resistance furnaces, and saves 20% electricity than variable frequency furnaces

5. Temperature Holding

Users don not need to consider cleaning up the molten aluminum when the power s off for 2 to 5days. Set the temperature to 650C degrees, and the 24 hours heat preservation power consumption is less than 60 degrees. And then can continue to work when the power comes in.

6. Temperature Control

The temperature control designed to improve the quality of casting products and control the temperature accurately. It adopts imported non-stick aluminium high temperature resistant casing.

7. Durable Crucible

The super-strength silicon carbide graphite crucible, which will not cause iron increased, and is easy to replace. Durable time is around 6 months, and more than one year if only for holding the temperature after melting.

8. Technical Stability

Inductance identification and PID control technologies, auto-tracking the proper operating frequency. It can work more than 10,000 hours without failure and failure rate less than 2%.

ZG-EHL Aluminum Alloys Induction Melting Furnace (electromagnetic heating, water-cooled)

TECHNICAL PARAMETER
1Model no.ZG-EHL150ZG-EHL300ZG-EHL450ZG-EHL600
2Furnace (mm)ф1000*1000ф1060*1200ф1060*1200ф1060*1200
3Crucible (mm)ф460*600ф610*710ф710*700ф780*750
4Melting Capacity150KG300KG450KG600KG
5Working Temperature20℃-850℃20℃-850℃20℃-850℃20℃-850℃
6Rated Power30-40KW50-60KW80-100KW100-120KW
7Melting Rate80KG/H120KG/H200KG/H260KG/H
8Input Power380V-3P380V-3P380V-3P380V-3P
9For Casting Machine180-220T280-400T500-630T800-1000T


ZG-EHL Aluminum Alloys Induction Melting Furnace (electromagnetic heating, water-cooled)
